3 Legged Thing LevelHed Screw-on Levelling Base - Darkness
Part Exchange & Trade In
Click here for a quoteNeed some more questions answered? Enquire about this product

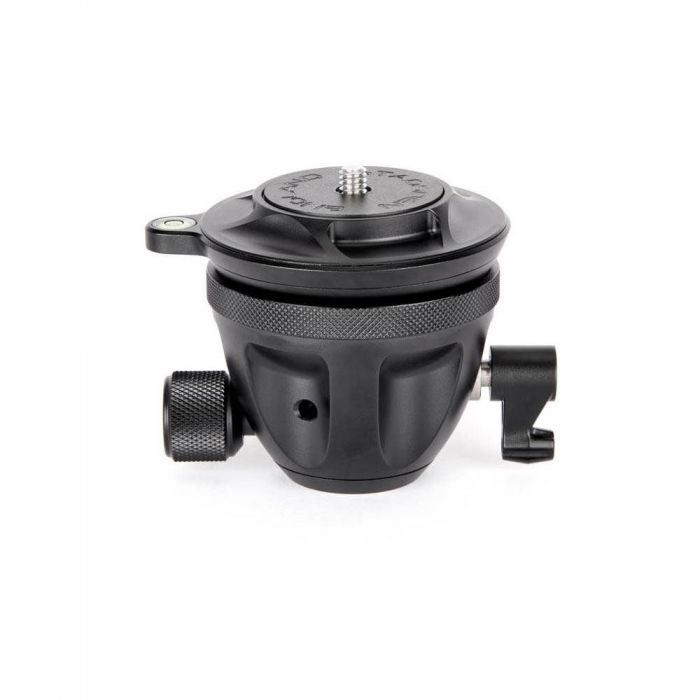

3 Legged Thing LevelHed is a levelling base accessory for tripods with a 3/8”-16 screw mounting thread. This useful photography tool allows users to achieve a level horizon without having to adjust their tripod’s leg positions, on even the most challenging terrain. It reduces set-up times and increases the accuracy and precision of levelling - ideal for landscapes, panoramas, and architectural photography.
Formed from precision engineered, anodised aerospace-grade magnesium alloy, the LevelHed features a raised central mounting plate that gives clearance for head or clamp controls. It has a standard ¼”-20 thread, enabling direct mounting of a camera, or by using the supplied 3/8”-16 adapter, a head or clamp.
The levelling mechanism is released and locked via a ratcheted knob. The LevelHed also features a 360˚ panning base which is controlled via a knurled twist lock on the side of the casing.
Features:
Raised central mounting plate enables clearance for clamp or head controls
1/4"-20 screw thread for mounting camera directly on the LevelHed
3/8”-16 threaded sleeve adapter for attachment of tripod heads, clamps, or other accessories
Ratcheted knob to release and lock smooth-action levelling mechanism
3/8”-16 female thread in the base to enable attachment to monopod or tripod
Smooth rotating bubble level can be moved to optimum position - helps achieve a level horizon
360˚ panning base with smooth movement for creation of panoramas or panning shots
Supplied In The Box
LevelHed with ¼”-20 screw thread and removable 3/8"-16 sleeve adapter
Toolz - Multi Tool, hex key, coin key, key ring, carabiner and bottle opener
Microfibre bag
Specifications:
Height 7 cm / 2.7 "
Bowl size n/a
Weight 375 g / 13.2 oz
Mounting Threads 1/4"-20 with 3/8"-16 threaded sleeve adapter
Material Aerospace-grade Magnesium alloy
Maximum diameter 9.1 cm / 3.5"
Base diameter 30 mm / 1.18 "
Load Capability 20 kg / 44 lbs
Warranty 5 Year Global Warranty
Box/Pack Dimensions 7 x 11.1 x 9.2 cm / 2.7 x 4.4 x 3.6 "
Box/Pack Weight 463 g / 16.3 oz
Manufacturer Part Number | LVLHEDDARKC4 |
---|
