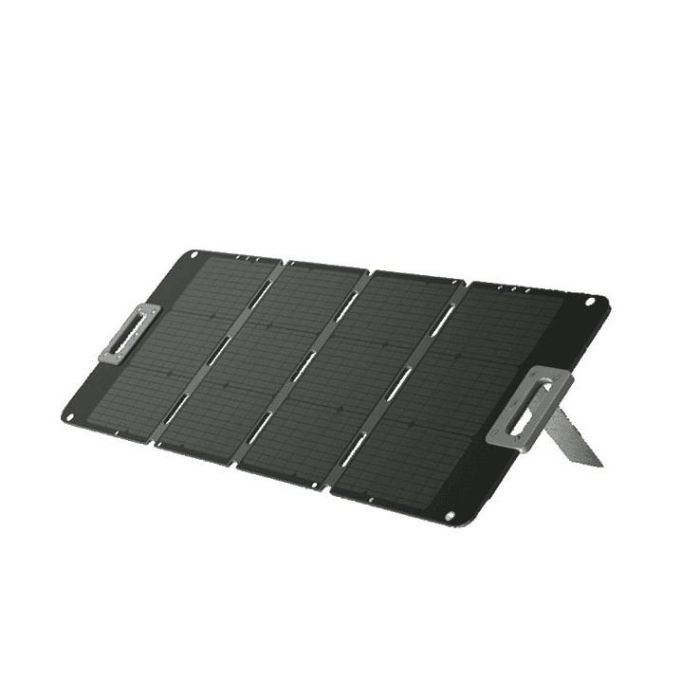

EZVIZ 200w Solar Panel For Power Station

EZVIZ 200w Solar Panel for Power Station. Designed to satisfy both the adventurous outdoor spirit and the leisurely weekend lifestyle, the PSP200 solar panel captures the power of nature so you can leave your worries behind. It uses direct sunlight to charge your EZVIZ power station in an easy, reliable way.

Features
Powerful Charging: The PSP100 uses monocrystalline silicon solar cells and multi-layered cell technology to charge your power station at a high efficiency conversion rate of up to 23%².
Lightweight & Easy to Carry: To store the panel or take it outdoors, simply fold it up and use the built-in handle to carry it comfortably on the go.
Waterproof & Durable: Built with ETFE-laminated solar cells, it’s highly reliable against outdoor conditions with long-standing performance. The solar panel is IP67-rated against rain and snow.
Adjustable Stand: Simply use the built-in kickstand to prop up your solar panel at the best angle – from 25 to 60 degrees – to optimize the available sunlight.

Estimated Average Charging Time

PS300 Power Station, 1 × PSP200 Solar Panel: 8-16 hours
PS600 Power Station, 1 × PSP200 Solar Panel: 4-8 hours

Specifications

Power

Open Circuit Voltage: 23.8V (-5% ,+10%)
Short Circuit Current: 10.66A (-5% ,+10%)
Max. Voltage: 19.8V (-5% ,+10%)
Max. Current: 10.1A (-5% ,+10%)
Max. Power: 200W (-5% ,+10%)

Solar Cell

Efficiency: 23%
Type: Monocrystalline solar cells

General

Operation Temperature: -20°C ~60°C(-4°F~140°F); Humidity 90% or less (non-condensing)
IP Grade: IP67
Connector: MC4
Cable: 14 AWG, 1000 ± 10 mm
Product Dimensions (Folded): 647 × 540 × 60 mm (25.4 × 21.2 × 2.36 inch)
Product Dimensions (Unfolded): 2379 × 540 × 33 mm (93.6 × 21.2 × 1.29 inch)
Packaging Dimensions: 625 × 120 × 720 mm (24.6 × 4.7 × 28.3 inch)
Weight (With Package): 10.1 kg (356.2 oz)
Net Weight (Without Bracket): 8.22 kg (289.9 oz)

In the box

PSP100 Portable Solar Panel
Quick Start Guide

Regulatory Information
Certifications

Certifications CE / UKCA / RoHS / WEEE / REACH
