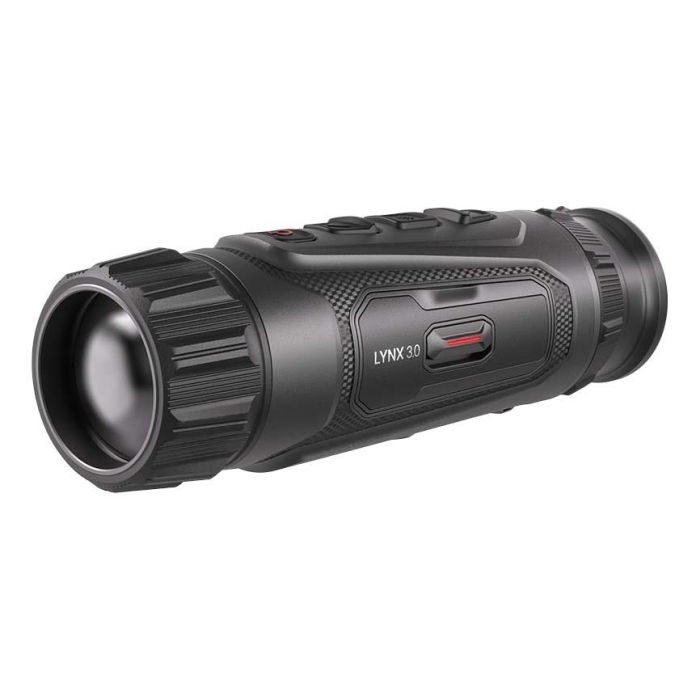

HIK Micro Lynx 3.0 35mm Thermal Monocular Scope (640x512) - LQ35

The HIKMICRO LQ35 3.0 Thermal Monocular is a high-performance thermal imaging device designed for professional hunters and users requiring reliable mid-to-long-range detection. Combining a powerful 640×512 thermal sensor with a 35mm F1.0 lens, it delivers exceptional clarity and detection capabilities in challenging environments. Its extended detection range of up to 1800 metres and wide field of view make it particularly suited to scanning large, open terrain.

Engineered with advanced imaging technologies including shutterless operation and AI-enhanced image processing, this compact monocular offers a refined viewing experience while maintaining a lightweight, pocket-friendly design.

Craftsmanship & Construction
The LQ35 3.0 is built around a robust VOx uncooled focal plane array sensor, delivering a high-resolution thermal image with a 50Hz refresh rate for smooth real-time viewing. Its 35mm F1.0 lens is designed for optimal light intake and thermal sensitivity, ensuring strong performance across varying conditions.

With a compact housing measuring 169.6 × 53.6 × 49.5 mm and a weight of just 354.5g, the monocular balances durability with portability. The IP67-rated construction provides protection against dust and water ingress, supporting reliable operation in demanding outdoor environments.

Fit & Comfort
Designed for handheld use, the monocular features a focus ring for precise manual adjustment, allowing users to fine-tune clarity quickly in the field. The 0.49-inch AMOLED display with 1920 × 1080 resolution offers a clear and comfortable viewing experience, supported by a 20mm eye relief and adjustable diopter range from -5D to +3D.

Its lightweight and compact form factor ensures easy carrying and extended use without fatigue, making it well suited for prolonged observation sessions.

Waterproof Performance
The LQ35 3.0 features an IP67 protection rating, ensuring resistance to dust and water ingress. This level of sealing allows the monocular to perform reliably in wet, muddy, or dusty environments, supporting consistent use in challenging outdoor conditions.

Key Features
640 × 512 thermal resolution with VOx uncooled sensor
35mm F1.0 lens with detection range up to 1800 metres
NETD less than 15 mK for high thermal sensitivity
1.9x to 15.2x magnification range with digital zoom
1920 × 1080 AMOLED display for clear image output
HIKMICRO Shutterless Imaging System (HSIS)
Image Pro 3.0 and Zoom Pro image enhancement algorithms
Multiple colour palettes including Black Hot and White Hot
Built-in 64GB memory with video, image, and audio recording
Wi-Fi hotspot capability (2.4 GHz / 5 GHz)
Replaceable 18650 rechargeable battery
Materials & Care
The monocular is constructed with durable electronic and optical components housed within a sealed body designed for outdoor use. Care should include keeping the lens clean and dry, ensuring the device is stored in appropriate conditions, and maintaining the battery according to standard rechargeable battery practices.

Specifications
Sensor: VOx Uncooled Focal Plane Array
Resolution: 640 × 512
Frame Rate: 50 Hz
Lens: 35mm, F1.0
Detection Range: 1800 m
Magnification: 1.9x – 15.2x
Field of View: 12.5° × 7.5°
Display: 0.49-inch AMOLED, 1920 × 1080
Battery Life: Up to 5 hours (25°C), 4.5 hours (-20°C)
Memory: 64GB built-in
Protection Rating: IP67
Weight: 354.5 g
Dimensions: 169.6 × 53.6 × 49.5 mm
