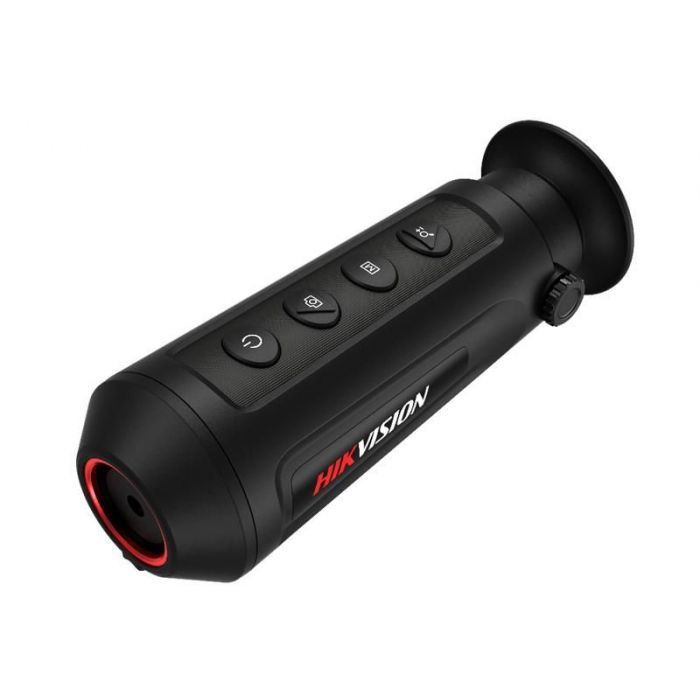

HIK Micro Lynx 6mm Thermal Monocular Scope

HIK Micro Lynx 6mm 35mK Smart Thermal Monocular (HM-LC06)

The HIK Micro Lynx 6mm delivers a high-quality thermal image and packs a host of features normally reserved for high-end thermal spotters.

The 160x120px, 17µm thermal sensor (35mK NETD Rating), and HIK software deliver a detailed image to the screen. The WiFi and the dedicated app allow you to take complete control of the unit's settings and features from your smartphone.

35mK NETD Rating = One of the most sensitive sensors available on the market, detecting even the smallest temperature differences!

IP67 rating guarantees a robust chassis capable of repelling dust and rain, protecting you from the worst of the weather.

Battery life = 10hrs of continuous running!

This is all backed up by a 3 year UK warranty on the main unit and a 2 year battery warranty.

Features:

Sensor 160×120px @ 17µm

Objective Lens 6mm

Detection Range (Vehicle 1.4 x 4m) 559m

Detection Range (Human 1.8 x 0.5m) 182m

SENSOR

Type Vanadium Oxide Uncooled Focal Plane Arrays

Resolution, pixels 160×120 px

Pixel pitch, µm 17µm

Frame rate, Hz 50 Hz

NETD Rating 35mK

OPTICS

Objective lens F1.1

Magnification (Optical) 0.6x

Magnification (Digital) 1x, 2x, 4x,

Field of view 24.7° × 18.7° (H × V)

DISPLAY

Type 5.08mm, LCOS

Resolution, Pixels 720 × 540

Colour Palettes Black Hot, White Hot, Red Hot, Fusion

VIDEO & SOUND

Video Recorder YES

Sound Recorder NO

Built-in memory, Gb 8 Gb

ADDITIONAL FEATURES

Hot Tracking YES

WiFI hot spot YES

T-Vision App support YES

ENVIRONMENTAL

Degree of protection, IP code IP67

Dust protection Protected against dust ingress

Water protection Protected against temporary submersion in water

Operating temperature range -20 °C to 55 °C

WEIGHT & SIZE

Dimensions, mm 158 mm × 61 mm × 57 mm

Weight, kg 0.25 kg

POWER SUPPLY

Operating time on battery

(WiFi & Hot tracking disabled) 10 hours of continuous running

Charging interface USB-C

Battery capacity after 1000 cycles 80%

USB cable supplied, no mains adaptor included
