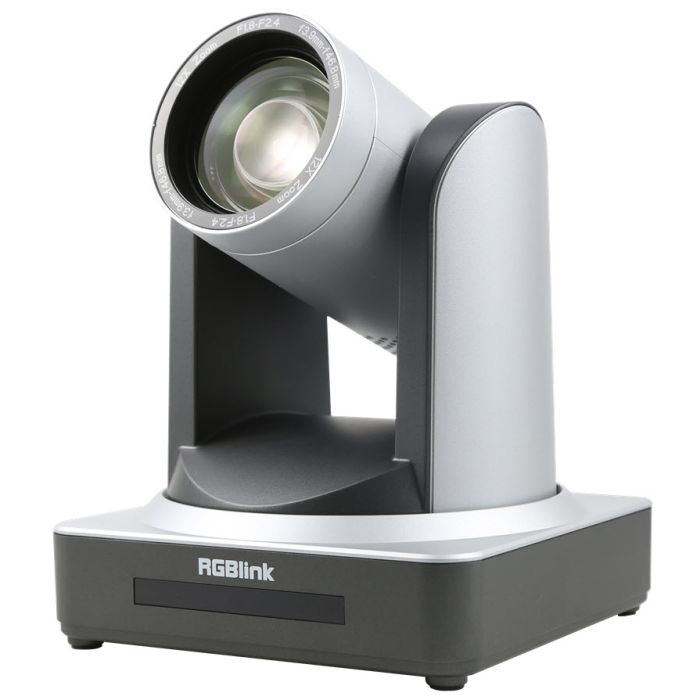

RGBlink PTZ Camera with 12x Optical Zoom

Precise Head Control

With built-in high precision motor drive control, the camera can be re-positioned in under a second by 60 degrees and a zoom speed of 0.1 degree. Whether large movement or small, multi-speed movement is not only smooth and accurate, but super quiet. Automatic focussing powered with advanced algorithms enhances overall performance aiding ease of operation.

12X Optical Zoom

RGBlink PTZ cameras offer embedded 2D & 3D noise reduction and ISP image processing technology. The result is clear, vivid and balance video regardless of zoom angle.

Professional PTZ Camera

Whether outputting to HDMI, SDI or IP, RGBlink PTZ cameras provide a host of onboard features and functions. Advanced ISP image processing and algorithms enhance image performance from the sensor.Full 340 degree horizontal and 120 degree vertical range along with up to wide 72.5 degree viewing angle are provided,...

INCLUDED IN BOX

1 x RGBlink RGB12X-PTZ-WH 12x Optical Zoom PTZ Camera

Connectors

Video(Output) HDMI: 1 x HDMI-A

SDI: 1 x BNC

LAN: 1 x RJ45

Audio 1 x 3.5mm Stereo Jack Input

Communication RS232: 2 x DIN 8

RS485: 1 x 2 Pin Terminal Connector

Network: 1 x 100Mbps(10/100BASE-TX)

Power 1 x HEC3800 DC Socket

Camera

Optical Zoom 12X f＝3.9～46.8mm

View Angle 6.3°～ 72.5°

AV F1.8 ～ F2.4

Digital Zoom 10X

Minimum Illumination 0.5Lux （F1.8，AGC ON）

DNR 2D & 3D DNR

White Balance Auto / Manual/ One Push/ 3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K

Focus Auto/Manual

Aperture/Electronic Shutter Auto/Manual

BLC ON/OFF

WDR OFF/ Dynamic level adjustment

Video Adjustment Brightness, Colour, Saturation, Contrast, Sharpness, B/W mode, Gamma curve

SNR >55dB

Effective Pixels 2.07m,16:9

Pan/Tilt Movement -170°～+170°/'-30°～+90°

Pan/Tilt Control Speed 0.1～60°/S, 0.1～30°/S

Preset Speed/Quantity Pan:60°/S,Tilt:30°/S;Up to 255 preset positions(10 remote control)

Audio Compression Format AAC,MP3,G.711A

Video Compression Format H.264, H.265,Dual Streaming Output

Output Resolutions 720p25/29.97/30/50/59.94/60

1080p25/30/29.97/30/50/59.94/60

Control Protocol VISCA, Pelco-D, Pelco-P

Baud Rate (bps) 115200, 9600, 4800, 2400bps

Network Protocol RTSP, RTMP, ONVIF, GB/T28181, Visca

Supported Standards HDMI: 1.3

SDI: SMPTE 425M (Level A & B), SMPTE 424M, SMPTE 292M, SMPTE 259M-C, DVB-ASI

Power

Input Voltage DC12V/1.5A

Max Power 12W

Environment

Temperature -10℃～50℃

Humidity 20%～80%

Physical

Weight Net 1.4kg

Dimension Net 150mm×150mm×167.5mm
