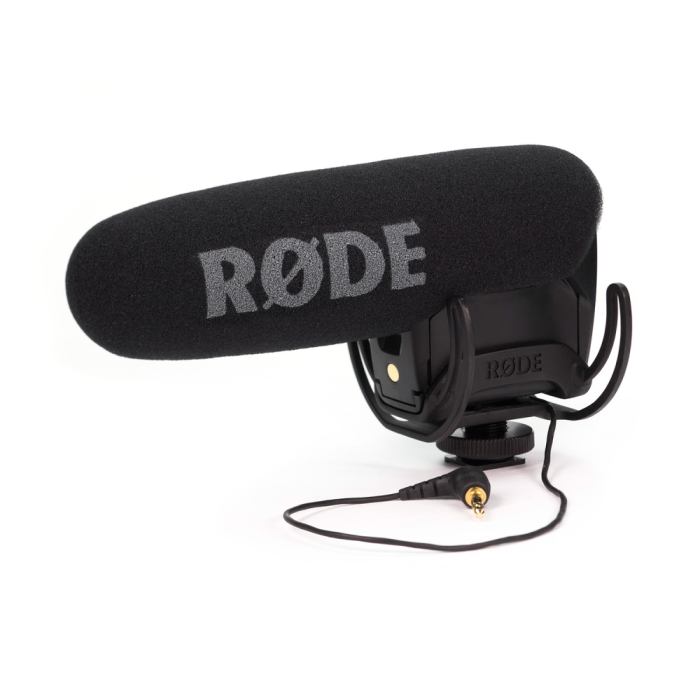

Rode VideoMic Pro R Directional Shotgun Microphone

A true shotgun microphone designed for use with camcorders, DSLR cameras and portable audio recorders as a source of primary and reference audio. The Rode VideoMic Pro R builds on the original VideoMic Pro with the inclusion of Rycote's famous Lyre suspension system, which isolates your microphone from handling noise. The Lyre suspension is made from advanced thermo plastic which is virtually non-breakable. The all-new capsule provides even lower self-noise and higher sensitivity than the original model, ensuring that you capture crystal-clear audio every time. The new design retains the audio controls of the original model with a high pass filter set at 80 hertz to enable you to cut out low frequency noise, such as traffic, without affecting the pick-up of the human voice frequencies.

Features:

Designed for use with camcorders, DSLRs, and portable audio recorders

Rycote Lyre shock mounting onboard

All-new capsule with lower noise and higher sensitivity

Broadcast recording quality condenser microphone

Compact form factor (150mm/6” length)

Ultra lightweight (85g/3oz)

9V battery powered - over 70 hours use (alkaline)

Integrated shock mounting

Integrated foam windscreen

3.5mm stereo mini-jack output (dual mono)

Two step High Pass Filter (flat, 80Hz)

Three position level control (-10dB, 0, +20dB)

Camera shoe mount with 3/8" thread for easy boompole mounting

Acoustic Principle: Line Gradient

Active Electronics: JFET impedance converter

Capsule: 0.50"

Address Type: End

Frequency Range: 40Hz - 20kHz(selected HPF @80)

Output Impedance: 200O

Maximum SPL: 134dB SPL (@ 1kHz, 1% THD into 1KO load)

Maximum Output Level: 6.9mV

Sensitivity: -32.0dB re 1 Volt/Pascal (20.00mV @ 94 dB SPL) +/- 2 dB @ 1kHz

Equivalent Noise Level (A-weighted): 14dB-A

Weight: 85gm

Dimensions: 100mmH x 75mmW x 170mmD

The RØDE VideoMic Pro is a true shotgun microphone designed for use with camcorders, DSLR cameras and portable audio recorders as a source of primary and reference audio.

At the heart of the VideoMic Pro is an all-new 1/2" condenser capsule that provides broadcast-quality audio via a 3.5mm minijack connector (outputting the mono signal to both left and right channels) with an incredibly low self-noise of just 14db. A super-cardioid polar pattern ensures that surrounding audio is minimised, and your recording is focused on the subject in front of the camera.

The integrated Rycote® Lyre® based shock mounting system separates the VideoMic Pro capsule and electronics from its mount, providing isolation from external physical factors that may cause unwanted rumble and vibrations in the microphone. Constructed from a single piece of hard-wearing thermoplastic, the Lyre provides superior acoustic suspension to traditional elastic solutions, and will never wear out, sag or snap.

Easily accessible on the rear face of the microphone are the power, filter and level controls. In addition to the microphone's native 40Hz-20kHz response a selectable high-pass filter at 80Hz is available, which will prevent low end noise such as air conditioners and traffic from being recorded.

Below these controls are the level settings, which attenuate or boost the recorded level as required. The -10dB level attenuation (or PAD) is ideal for recording loud sound sources, such as live music, motorsport, or interviews where the subject is very close to the camera. The +20dB level boost is designed for use with DSLR cameras, allowing the user to reduce the camera's preamp level (or mic-input level), effectively reducing the amount of noise generated by the camera's comparatively low quality audio circuitry.

The microphone uses a standard sized shoe mount for on camera use, and features a 3/8" thread in the base of the mount for easy boom pole mounting.

The VideoMic pro is battery powered, and provides over 70 hours recording from a single 9V battery.

The RØDE VideoMic is designed and made in Australia, and covered by RØDE Microphones' industry leading 10 year warranty.
