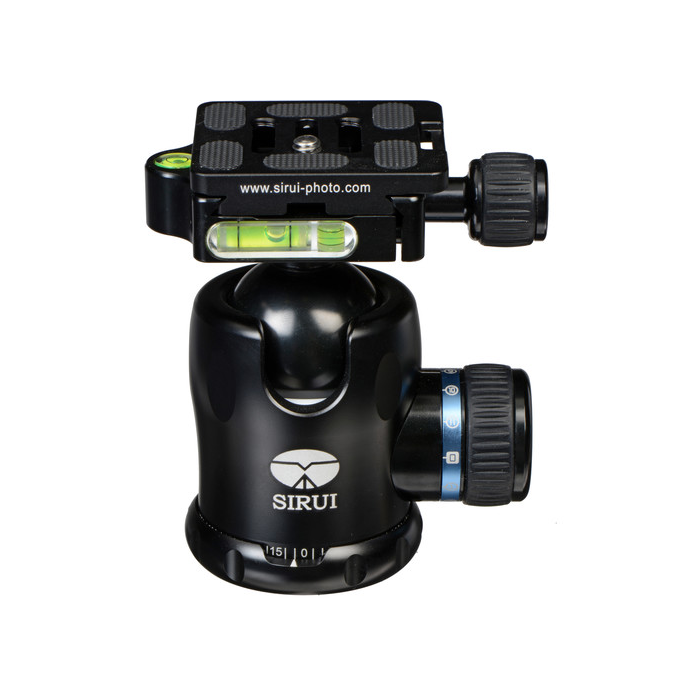

The Sirui K-20x Ball Head is an extremely sturdy head with control knobs for pan, tilt, and tension, plus an Arca-style clamp for the included quick-release plate. The pan, tilt, and quick-release knobs are all separate, while the tension knob is integrated into the ball-locking (tilt) knob. The head tilts 90° for portrait orientation.

The interior ball locking of the K-20x head has a sphere tolerance of 0.01mm, and it's equipped with an orientation-memory locking dial. This helps yield a high load capacity of 55 lb. The quick-release clamp features a secondary release button that prevents any inadvertent disengagement of the camera/plate from the clamp, thereby adding to the head's overall security & stability. The Arca-style platform conforms to standard sizes, so you can use compatible plates from other manufacturers.

The three control knobs allow a photographer to exercise extremely fine control over the orientation of the camera, whether it's a DSLR, 35mm, medium-format camera, or even a camcorder. Pan, for instance, can be adjusted while the tilt stays locked, enabling precise movement that's measurable – there are degree markers at the panning base for panoramic photography.

The K-20x is CNC-machined from an aircraft-grade aluminum alloy and anodized with an oxidation treatment that ensures a durable, high-quality finish.

Arca-style quick-release clamp with secondary safety lock

Two bubble levels (horizontal and vertical) on the quick-release platform ensure that your framing hews to the horizon in either portrait or landscape orientation

The friction-control knob, integrated into the ball-locking knob, allows the operator to adjust the resistance of the ball's movement

Quick-release plate is aluminum alloy with a rubberized surface

Stainless steel camera screw


Load Capacity 55 lb (25 kg)

Ball Sphere Diameter 1.50" (38mm)

Quick Release Yes, with Arca-style plate

Spirit Level Yes, 2

Tension Control Yes, integrated into tilt-control knob

Separate Panning Lock Yes

Pan 360°

Tilt 90°

Head to Tripod Mounting Thread 3/8"-16 Female

Camera Mounting 1/4"-20 Male

Height 3.86" (9.8 cm)

Maximum Diameter Not specified by manufacturer

Weight 0.88 lb (0.4 kg)

More Information
Colour Black
