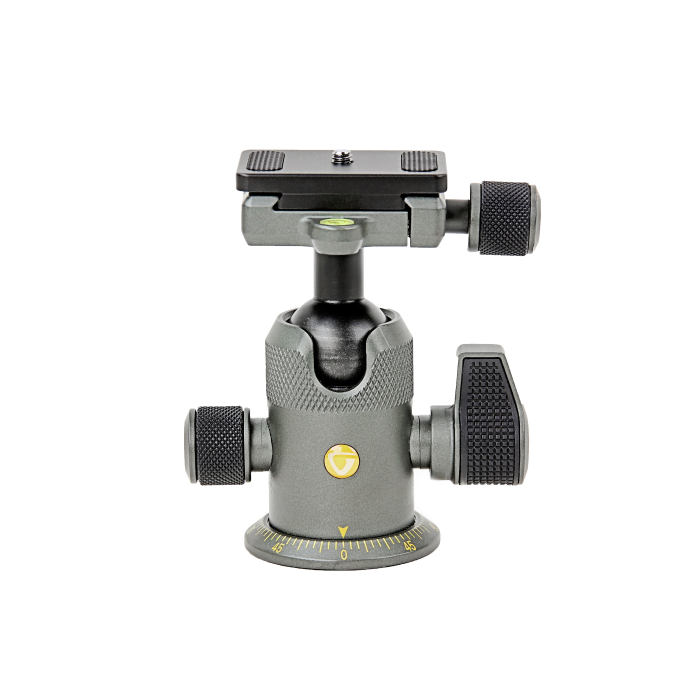

Vanguard Alta BH-100 Ball Head

SKU
TA1250:12004264
£69.00
Store availability :

Out of stock
Free Shipping

Part Exchange & Trade In

Click here for a quote

Need some more questions answered? Enquire about this product

0% Finance & Buy Now Pay Later
Available On All Orders Over £279
Find out more



photoGuard Camera Insurance

The Vanguard Alta BH-100 is an Arca-type ball head that has a load capacity of 22.0 lb and can be attached to tripods or other support systems that feature a 3/8"-16 mount. A reducer bushing is provided, which allows this ball head to be attached to tripods or other support systems that feature a 1/4"-20 mount.

Cameras or accessories that are compatible with a 1/4"-20 mount can be connected to the included QS-60 V2 Quick Release Plate. The quick release plate can be attached or removed from the integrated clamp located at the top of the head's ball-and-socket joint by tightening or loosening the clamp's knurled, locking knob. Within the recessed surface between the clamp's jaws is a retaining pin. This pin prevents an installed QS-60 V2 Quick Release Plate from accidentally sliding off when the clamp is opened. The quick release plate features a rubberized, non-slip platform while two built-in bubble levels along the edges of the clamp accommodate landscape or portrait orientations.

By loosening the ball head's primary locking knob, the head's ball-and-socket joint can be quickly swiveled, angled, fully tilted, or returned to its upright position. Variable tension can be applied to the ball-and-socket joint's movements by rotating the friction knob located above the primary locking knob. Toward the side of the ball head opposite the primary locking knob is a secondary locking knob, which controls the ability to rotate the head 360°.

Arca-type ball head with 22.0 lb load capacity

Compatible with tripods or support systems that feature a 3/8"-16 mount

Reducer bushing included for compatibility with tripods or support systems that feature a 1/4"-20 mount

Uses ball-and-socket joint to help maximize pan-and-tilt flexibility

Ball-and-socket joint provides 360° of swivel control, is tiltable down to a 90° angle, and can be locked into place

Large, primary locking knob with knurled surface allows ball-and-socket joint to be quickly swiveled, angled, fully tilted, or returned to its upright position

Knurled friction knob located above the primary locking knob applies variable tension on the ball-and-socket joint's movements

Secondary locking knob with knurled surface allows head to rotate 360°

Integrated clamp on top of on the ball-and-socket joint is compatible with included QS-60 V2 Quick Release Plate

Two built-in bubble levels along the edges of the clamp accommodate landscape or portrait orientations

Integrated retaining pin on the clamp prevents QS-60 V2 Quick Release Plate from accidentally sliding off when the clamp is opened

Durable, aluminum-alloy construction

Specifications:

Maximum Height(mm/inch) 115 mm ( 4 1/2'' )

Minimum Height(mm/inch) 0 mm ( 0'' )

Maximum Loading(kg/lbs) 10.0 kg / 22 lbs

Weight (kgs/oz) 0.47 kgs / 16.6 oz

Main material Aluminum Alloy

Bubble level quantity 2 pcs

Handle quantity

Fine tuning Yes

Swivel lock Yes

Swivel 360° 360°

TILT 180° -91°~35°

TILT 90°

Fluid action 0°~0°

Quick release lock Knob

Quick shoe Yes

Quick shoe style QS-60 V2
