Vanguard VEO BH-160S Dual Axis Ball Head

Store availability :

+ -
In stock
Free Shipping

Part Exchange & Trade In

Click here for a quote

Need some more questions answered? Enquire about this product

0% Finance Available On All Orders Over £279 Find out more

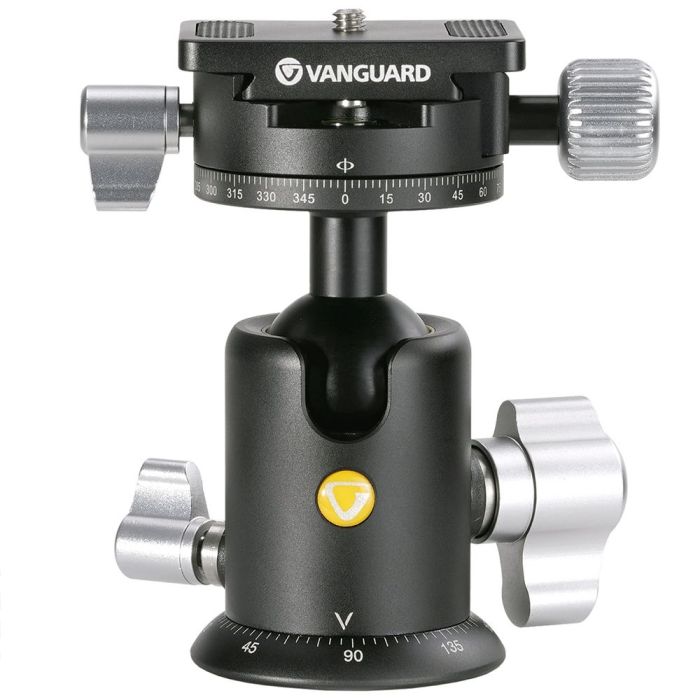

The VEO BH-160S is an Arca compatible ball head that introduces a second pan axis under the quick release plate mount to deliver maximum control in framing your perfect shot.

The dual axis ball head allows you make micro adjustments using the most appropriate axis, without needing to loosen the main ball joint and risk losing the overall setup. Alternatively, you can shoot panoramas whatever angle your tripod is set up at.

Despite weighing in at just 490g, this head has a maximum load capacity of 15kg and is machined from aircraft grade aluminium using the latest CNC technology. This means that as well as holding almost any kit, the movement is incredibly precise due to the mirror smooth finish that CNC production delivers.

The head includes easy grip locking knobs, and the top pan locking knob and the main ball locking knob can be pulled out and repositioned to more convenient positions, without affecting the solidity of the head.

With a 58mm diameter base and the ability to fit any tripod (either 1/4" or 3/8"), this head is perfect for full-sized tripods, whatever the brand.


Head Style: Ball Head

Handles: None

Model Number: VEO BH-160S

Arca Swiss Compatible: Yes

Quick Shoe: QS-62 V3

Maximum Load Capacity: 15kg

Separate Pan Lock: Yes (two)

Friction Control: No

Swivel: 360°

Spirit Bubble Levels: 1

Length: 115mm

Height: 112mm

Base Diameter: 58mm

Head Attachment Thread: 1/4" and 3/8"

Weight: 490g

Accessories: Quick Shoe and 1/4" to 3/8" adaptor thread included

Suitable For Mirrorless: Yes

Suitable For DSLR: Yes

Suitable For PRO Kit: Yes

Warranty: 2 Years

Extended Warranty: 10 Years

Series: VEO Heads

Colour: Black

Other: Dual Axis for precise control

More Information
Manufacturer Part Number VGTVEOBH160S
