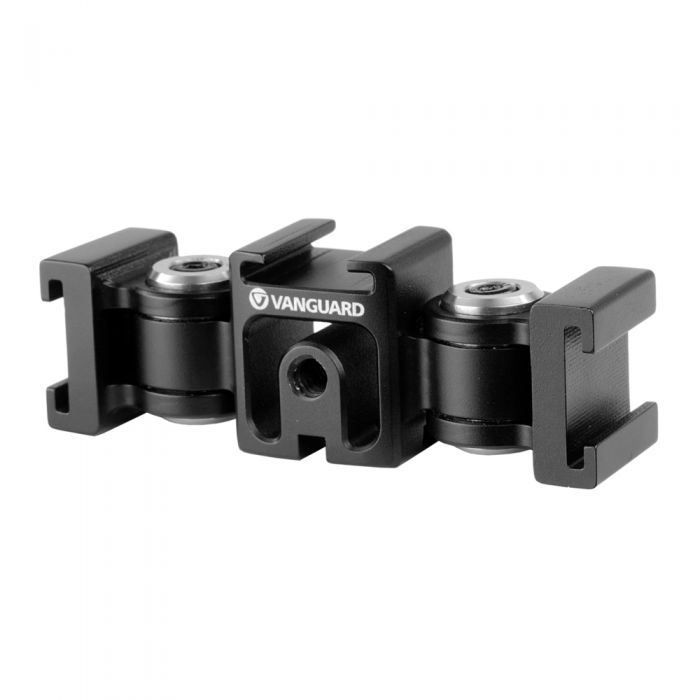

The VEO CSMM3 is allows you to mount three accessories with a cold shoe mount base to a tripod support arm, and adjust the angle of the side cold shoe mounts by +90° to -90°.

Key Features

- Fits any tripod support arm with 1/4" thread (VEO TSA DLX models with bayonet fittings recommended)

- Fits camera hot shoe mount using a suitable cold shoe mount such as the VEO CSM or VEO CSM DLX

- Attach three accessories with a cold shoe mount base onto the top plates

- 1/4" thread hole on the front of the VEO CSMM3 is suitable for a Tripod Support Arm

- Angle of the two side cold shoe mounts can be adjusted +90° to -90°

- 88mm wide extended

- 22mm tall

- CNC machined aluminium

If your accessory base needs a 1/4" thread, or you want to attach this cold shoe multi-mount into the hot shoe mount on your camera, you can use the VEO CSM or VEO CSM DLX.

To attach to your tripod support arm, simply screw the 1/4" thread into the base of the VEO CSMM3. While it would take any 1/4" thread, to avoid the cold shoe mount unscrewing in use, we would recommend using a tripod support arm with a bayonet fitting, such as a VEO TSA DLX model.

To attach the it to your accessory, simply slot the accessory into the chosen cold shoe mount and tighten accordingly.

You can then adjust the angle of each side cold shoe mount by 180° (+90° to -90°) and you can lock the position in place using an allen key.

On the front of the cold shoe mount is a 1/4" thread, allowing you to attach another suitable support arm, such as the Vanguard Tripod Support Arms, to add further accessories.

Folding to 60mm wide (or a maximum of 88mm wide), this triple cold shoe mount is more that just a solution for attaching accessories.

More Information
Manufacturer Part Number VGAVEOCSMM3
