YoloLiv Instream Vertical Video All-In-One Switcher, Monitor, Stream TikTok Instagram

Vertical Streaming Made Easy. The first and only all-in-one multi-cam vertical livestreaming studio.

Create better content for Instagram, TikTok, and more.

Multi-Cam

Countdown Timer

Picture in Picture

Graphic Overlays

Lower-Thirds

Chroma Key

Key Features:

All-in-One: Encoder, Switcher, Recorder, and Monitor

Multiple Capture Sources: 2 HDMI + 1 USB In + SD Card

Running on Android OS: No computer or OBS required

3 Ways to Connect: Wifi, 4G LTE, Ethernet

Total Touch Screen Control: Operate intuitively as your smartphone

Internal Battery: Lasts for 3+ hours

Portable and Mobile: Compact size, fits into backpack

Live On The Go: Entire mobile livestram studio, in one box

Specifications:

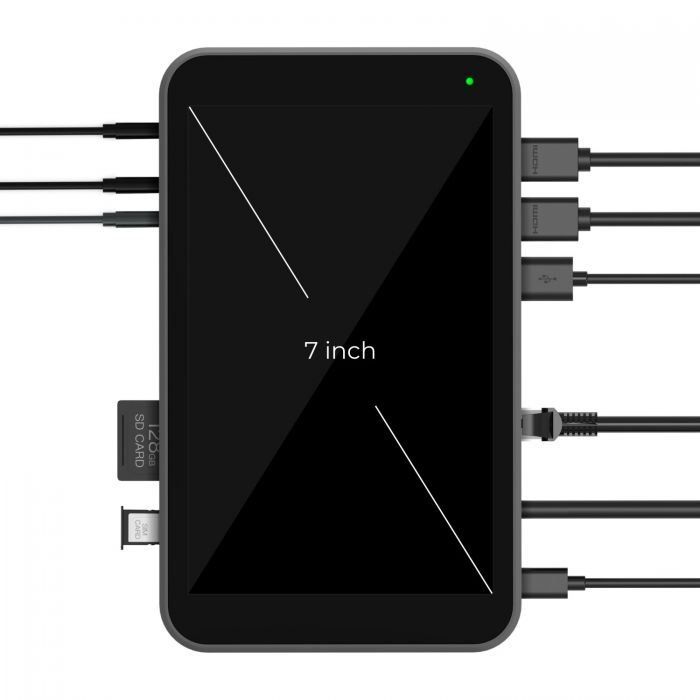

Ports

HDMI IN: Video input

HDMI IN: Video input

USB-C: Video input (Please note in some USB webcams, only video can be captured.)

1/4" Screw Hole: Mount Instream Mini with camera

ETHERNET PORT: Connect to Internet by Ethernet cable

HDMI OUT: Video out to monitor or computer for Zoom/Skype meetings

USB-C: Only for charging

AUDIO OUT: Connect with 3.5mm monitor headphones

LINE IN: Stereo, connect to electric guitar or synthesizer

MIC IN: Mono, connect to microphone for recording

SD Card Slot: Used for recording and loading graphics

SIM Card Slot: Insert SIM card to connect to Internet

Power Button: Turn on and turn off

Encoded Format

Video Encoded Format：H.264

Audio Encoded Format：（AAC)44.1K 2Ch 16bit

Video Recorded format：MP4

Audio Input Format：32KHZ/44.1KHZ/48KHZ :16bit

Live Broadcast Resolution：480P/720P/1080P

Frame Rate: Up to 60 fps

Video Storage

Storage Card Type：SD Card

Storage Card Type：SD Card

File System for SD Card: FAT32, exFAT, NTFS

Network Connection

WiFi: 2.4G/5G

4G Network: Global standard

SIM Card Size: Nano card

CPU

QualComm Snapdragon 845, 8-core Processor

Power

Power Interface：Type C, Quick Charge 3.0

Battery Capacity：10000mAh

Input power rating: DC5V 3A,9V 2A,12V 1.5A

Transmission

Network Protocol：RTMP/RTMPS

Dimensions & Weight

Height: 25mm

Width: 112.5mm

Length: 188mm

Weight: 600g
