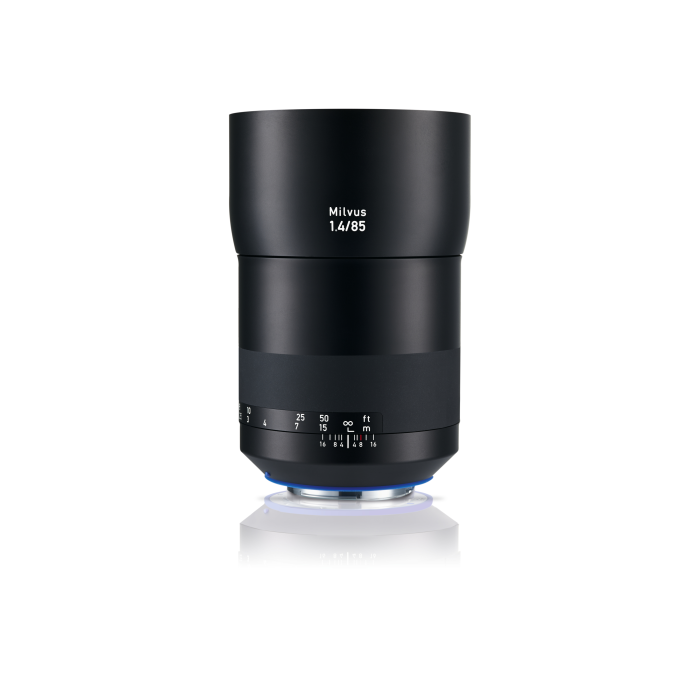

The redesigned ZEISS Milvus 1.4/85 lens is particularly suitable for portrait photography. This lens is an absolute must for compositions where the main subject is to be sharply defined and emphasized against a beautiful bokeh background. The purely spherical optical design and use of special types of glass ensure optimal micro-contrast and extremely low chromatic aberration. The result: outstanding photographs every time – with the champion of bokeh.

Technical specifications:

Focal length	85 mm
Aperture range	f/1.4 – f/16
Focusing range	0,80 m (2.62 ft) - ∞
Number of elements/groups	11 / 9
Angular field, diag./horiz./vert.	29° / 24° / 16°
Coverage at close range	303 mm x 201 mm (11.93‘‘ x 7,91‘‘)
Filter thread	M77 x 0.75
Dimensions (with caps)	ZF.2: 119,0 mm (4.69‘‘) ZE: 121,0 mm (4.76‘‘)
Weight	ZF.2: 1.210 g (42.68 oz) ZE: 1.280 g (45.15 oz)
Camera mounts	F Mount (ZF.2) EF Mount (ZE)

Design

Milvus 1.4/85

The famous symmetric lens design invented by Dr. Paul Rudolph at ZEISS in 1896. The Planar lens is the most successful camera lens design – and, by the way, the most plagiarized – ever created. It provides the lens designer with numerous means to correct aberrations extraordinarily well. And its performance is very constant over a wide range of imaging ratios, enabling such a versatile lens variety as the Makro-Planar lens.

Features

Milvus 1.4/85

Excellent imagery, even in difficult light conditions

All lenses features a T*® antireflective coating from ZEISS. Outstanding stray light reduction is achieved by combining a number of optimally matched measures. In addition to the ZEISS T* coating, all lens edges are provided with a special pitch-black lacquer in a complex manual process. Light traps in mechanical components and specially designed surfaces are integrated to prevent the occurrence of reflections. Each focal length has its own individual optical design with the use of special types of glass displaying anomalous partial dispersion. This reduces the occurrence of color fringes at high-contrast edges of subjects to an absolute minimum.

Future-proof solution for high-resolution
camera systems

The excellent image performance of the ZEISS Milvus lenses is sharply focused on the requirements of current and future high-performance digital cameras. Thanks to the low level of stray light allowed by the lens design, high-contrast images are also possible with increasing high dynamic ranges of the sensors (HDR). The minimization of coma, astigmatism and spherical aberrations enables constantly high resolution over the entire image field. The optics are designed to ensure full utilization of the performance provided by high-resolution camera systems. Regardless of what the future holds – with the Milvus lenses from ZEISS you are optimally equipped any time, any place.

Creative still and video photography through precise, manual focusing

Manually focusing a lens means controlling and therefore actively composing an image gently and precisely from your fingertips. Here, a good ergonomic design makes all the difference. ZEISS Milvus lenses feature a large rotation angle which enables pinpoint focusing. The top-quality focusing mechanism moves smoothly without backlash, optimally supporting the photographer's creative interplay with the focal plane of high-speed fixed focal lengths. Changes are immediately visible in the viewfinder or display. The engraving in meters and feet, and the focus scale provide additional support for manual focusing. The silent, continuous aperture setting (de-click function with ZF.2 mount) and the long focusing range lay optimal conditions for video photography.

Long-lasting product with protection against environmental influences

An optimized ergonomic design enables fatigue-free photography and reduces camera shake. The all-metal housing makes every adjustment a haptic experience. The dynamic, precise barrel design sets new trends in the world of camera lenses. However, the ZEISS Milvus lenses will impress you not only due to their visual and haptic excellence, but also thanks to their inner qualities. Special seals for protection against dust and splashes expand the photographer's creative potential by guaranteeing the system's functional reliability even in environmentally difficult situations.

Stable image performance over the
entire focusing range

State-of-the-art camera systems and high-resolution digital image sensors are now demanding more and more performance from the lenses. The Floating Elements Design permits constantly high image performance in the focal plane – from the minimum object distance to infinity. This is accomplished by changing the axial distance between individual lens elements or element groups. The adjustment of the element spacing is coupled to the distance setting so that it always results in the right correction. The mechanical design of the ZEISS Milvus lenses is highly complex and the workmanship must be extremely exact – both specialties of ZEISS.
