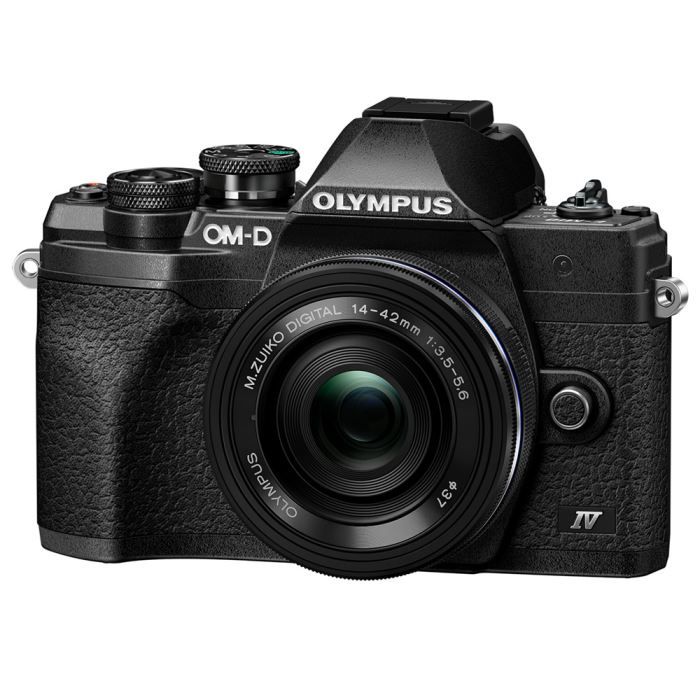

The OM-D E-M10 Mark IV meshes many of Olympus's flagship features and technologies with the compact and highly portable E-M10 design. Incorporating the 20.3MP Micro Four Thirds sensor and TruePic VIII image processor, the E-M10 Mark IV is characterised by its UHD 4K video recording capabilities, fast 8.7 fps continuous shooting rate, and wide ISO 200-25600 sensitivity range to suit working in a variety of lighting conditions. The sensor also employs a 121-point contrast-detection AF system, which uses subject detection algorithms from the E-M1-series, for fast, accurate, and intelligent focusing performance. Additionally, 5-axis sensor-shift image stabilisation is also featured, which compensates for approximately 4.5 stops of camera shake for sharper handheld shooting.
In regard to the physical design, the E-M10 Mark IV is an impressively svelte camera but still sports a large 3.0" 1.04m-dot touchscreen LCD, which has a 180° tilting design for working from high, low, and front-facing angles. For eye-level viewing, there is a 2.36m-dot OLED electronic viewfinder. Also, built-in Wi-Fi and Bluetooth permit connecting the camera to a smartphone or tablet for direct wireless sharing of images or for remote camera from the mobile device.
20.3MP Live MOS Sensor and TruePic VIII Image Processor
A high-resolution 20.3MP Live MOS sensor works in conjunction with a TruePic VIII image processor to promote fast shooting performance, a sensitivity range from ISO 200-25600, and versatile video recording capabilities. Ideal for photographing moving subjects, too, the sensor and processor combination enables full-resolution continuous shooting up to 8.7 fps. Beyond stills, the E-M10 Mark IV also supports UHD 4K video recording up to 30 fps, Full HD at 60 fps, and high-speed HD recording at 120 fps.
5-Axis Sensor-Shift Image Stabilisation
In-body, sensor-shift image stabilisation helps to minimize the appearance of camera shake by up to 4.5 stops with any lens in use and compensates for camera movements that become especially noticeable when working with telephoto shots, macro imagery, and long exposures. Furthermore, this advanced image stabilisation system works across five axes to compensate for vertical angle rotation, horizontal angle rotation, horizontal shift, vertical shift, and rolling camera shake movement. This range of detected movements serves to benefit traditional still image shooting as well as movie recording and working with moving subjects more effectively.
121-Point Contrast-Detection AF and Subject Detection
The quick and intelligent autofocus system uses 121 contrast-detection areas for refined accuracy and focusing speed when working in variety of lighting conditions and shooting situations. Suiting working with moving subjects, continuous autofocus benefits from the same subject-detection algorithm used in the sports-optimised E-M1X and, benefitting portraiture, the same face- and eye-detection functions as the E-M1 Mark III also make it possible to accurately focus on the profile, lowered face, or a partially hidden face. Alternatively, manual focus operation is also benefitted by the inclusion of MF assist functions, including live view magnification and focus peaking.
Body Design and Connectivity
- High-resolution 2.36m-dot electronic viewfinder is available for eye-level monitoring, and it offers a 0.67x maximum magnification for clear, distortion-free viewing.
- Rear 3.0" 1.04m-dot LCD monitor features an 80° upward, 180° downward tilting design to support working from a variety of angles, including front-facing for perfectly framed selfies. The screen is also a touchscreen for intuitive menu navigation and image playback.
- Included BLS-50 rechargeable lithium-ion battery is used to provide approximately 360 shots per charge.
- In-camera battery charging is supported via the micro-USB port.
- Single SD memory card slot is UHS-II compatible for fast read/write speeds.
- Built-in Wi-Fi and Bluetooth permits wireless image sharing and remote camera control from a linked smartphone or tablet when using the dedicated O.I.Share app for iOS and Android.
- Live Composite is a unique long exposure mode that allows you to gradually build up an exposure over time without overexposing key elements within the frame. This mode works to only record newly detected light sources over time, and allows you to watch as an image develops, making it ideally suited for photographing star trails or other moving light sources.
- Live Bulb and Live Time settings can be used to produce creative long exposure imagery. Live Bulb lets you hold the shutter open for up to one minute and Live Time lets you press the shutter button once to open the shutter and then press again within a minute to end the exposure.
- Interval shooting is supported for up to 999 frames with 1 second to 24-hour exposure intervals.
- Art Filters: Pop Art, Soft Focus, Pale & Light Colour , Light Tone, Grainy Film, Pin Hole, Diorama, Cross Process, Gentle Sepia, Dramatic Tone, Key Line, Watercolour, Vintage, Partial Colour (18 Colour), Bleach Bypass, Instant Film.
M.Zuiko Digital ED 14-42mm f/3.5-5.6 EZ Lens
Included with the camera body is the M.Zuiko Digital ED 14-42mm f/3.5-5.6 EZ; a versatile 28-84mm equivalent zoom covering wide to portrait-length fields of view. Despite its compact profile, this lens includes an advanced optical design, which includes aspherical, low dispersion, and high refractive index elements to achieve a high degree of sharpness and clarity throughout the zoom range. A ZERO coating has also been applied to individual elements to suppress flare and ghosting for high contrast, colour-accurate imagery. In addition to the optical design and small size, the lens is also characterised by its Electronic Zoom mechanism, for smooth and constant zoom movements, and a Movie & Still Compatible (MSC) AF system that is quick, quiet, and precise to suit both video and photo applications.
